Powerful and effortless flight performance
Robustly built, the Matrice 350 RTK features powerful propulsion, improved protection rating, and excellent flight performance, enabling it to effortlessly tackle a wide variety of challenges.
Staying stable with the new transmission system
O3 Enterprise Transmission
The Matrix 350 RTK adopts the DJI O3 Enterprise transmission, which supports three-channel 1080p HD live feeds, 5 and a maximum transmission distance of 20 km. 6 Both the aircraft and the remote controller are equipped with a four-antenna transceiver system, which can intelligently select the two optimal antennas to transmit signals, while the four antennas receive signals simultaneously. Thus, anti-interference capabilities are greatly improved and transmission stability is optimized.
New control experience
DJI RC Plus
Equipped with a 7-inch high-brightness screen, DJI RC Plus supports Dual Operator mode and comes with a standard WB37 external battery that offers up to six hours of runtime, meeting diverse operational needs.
Ready for the harshest environments
Rated IP54, 2 DJI RC Plus is dust and water resistant to operate reliably even in adverse weather conditions. The operating temperature ranges from -20° to 50° C (-4° to 122° F) to support 24-hour operation even in very hot or cold environments.
Smooth and efficient control
The remote control has numerous buttons and dials on the front, back, and top for quick operation. Button functions can be customized to fit users’ habits and provide an intuitive and flexible experience.
DJI Pilot 2
The DJI Pilot 2 application has been further optimized to clearly present mission type and flight status. Easy and smooth control of the aircraft and payloads facilitates more efficient operation.
Upgraded battery system
New dual battery system
The Matrix 350 RTK is equipped with a new TB65 dual-battery system, which supports hot battery replacement and allows multiple flights without shutting down. The battery can be charged up to 400 cycles, 3 reducing the cost of a single flight.

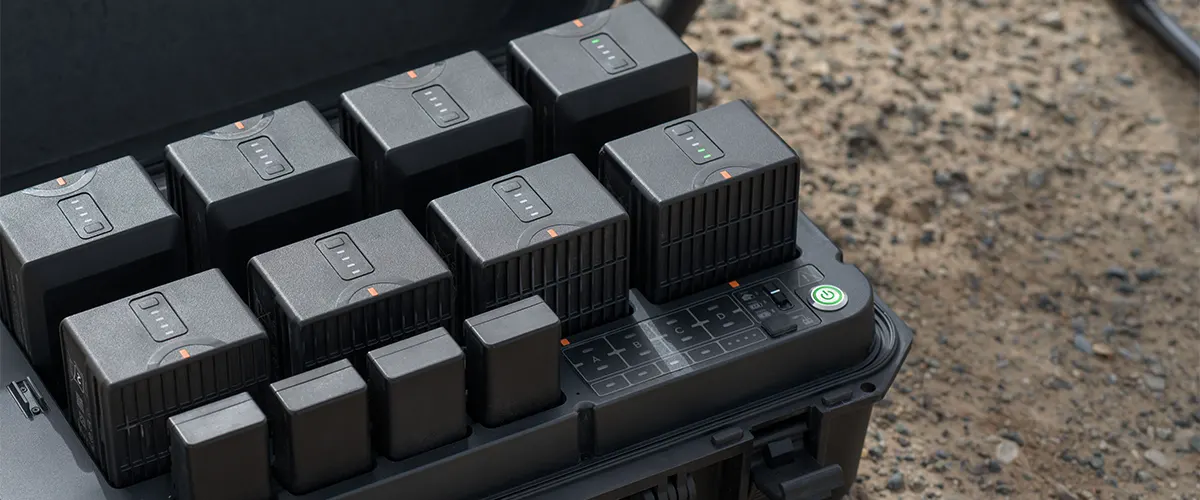

Next-generation intelligent battery station
The new BS65 intelligent battery station offers a unique solution for charging, storing and transporting batteries.
Multiple charging modes
In storage mode, the battery is charged to 50%, ideal for long-term storage. In Ready-to-Fly mode, quickly charge multiple sets of batteries to 90% to start operation at any time and extend battery life.
When the battery station is connected to the DJI RC Plus, the DJI Pilot 2 app displays the status and health information of the battery. In addition, you can set the number of self-discharge days, update firmware, export logs, and access other quick one-touch operations.
The battery station is designed with wheels that move 360 degrees for easy transportation and transitions.
Increased flight safety
The Matrice 350 RTK adds a new arm lock detection feature that avoids the risk of unlocked sleeves, allowing you to focus on flying with greater peace of mind.
With excellent night vision capabilities, the FPV camera can clearly present the surrounding environment and obstacles during night flight. It works in tandem with the PinPoint function to provide better navigation for safe flight, helping to operate more safely at night.
The Matrix 350 RTK is designed with a six-way binocular vision system and an infrared detection system for six-way awareness, positioning and obstacle detection capability, providing complete protection during flight. 7
With the CSM radar installed, the Matrice 350 RTK can detect subtle obstacles upward or within the horizontal range of 360° and avoid them in time. 9 The effective detection range is up to 30 m, 10 further improving flight safety.
Both the aircraft system and the sensor system of the Matrice 350 RTK adopt a redundant design to ensure maximum flight safety, enabling it to cope more confidently with the harshest operating environments.
Powerful payloads 8
The Matrix 350 RTK supports a single downward gimbal, dual downward gimbal 11 and single upward gimbal 11 and features an open E-Port interface. With a maximum payload capacity of 2.7 kg, the aircraft can carry up to three payloads simultaneously, meeting the needs of different operational scenarios such as public safety, inspection and mapping.
Zenmuse H20 series: The 4 sensors of the zoom camera, wide-angle camera, camera
thermal and laser rangefinder operate together, integrating advanced intelligent algorithms to deliver outstanding detection and imaging performance.
Zenmuse H20N: integrates starlight sensors in its wide-angle zoom cameras. Combine that with two thermal zoom cameras and a laser distance detector, and the user gets a hybrid payload perfect for any occasion.
Zenmuse P1: integrates a full frame sensor with fixed focus interchangeable lenses on a 3-axis stabilizer. Designed for photogrammetry flight missions, it brings efficiency and accuracy to a whole new level.
Zenmuse L1: integrates a Livox Lidar module, a high-precision IMU and a mapping camera. Used in conjunction with a flight platform, it forms a complete solution, providing real-time 3D data throughout the day, efficiently capturing details of complex structures and providing highly accurate reconstructed models.
Third-party payloads: Custom payloads such as gas detectors, speakers, and multispectral sensors can be combined with M350 RTK via DJI Payload SDK to expand application scenarios.
The Matrix 350 RTK supports Waypoint, Mapping, Oblique and Linear Flight missions. You can use Terrain Follow 12 or Smart Oblique 13 for efficient data collection. Together with DJI Terra, 2D and 3D HD digital results can be quickly obtained, enabling high-precision and efficient mapping operations.
With features such as high-precision PinPoint and cloud-based real-time mapping, 14 the Matrix 350 RTK can connect air, ground and cloud. After the aircraft has completed image collection, DJI FlightHub 2 can quickly model the operation site and transmit command information to the aircraft and operators on the ground. Both the remote controller and FlightHub 2 support point, line and surface drawing and real-time loading, and can collaborate with the aircraft to livestream the view of real-time operations, overcoming communication barriers for collaborative air-ground operations.
Automated precision inspection
With live mission logging, the Matrice 350 RTK can generate and store flight path files that can be used at any time to carry out automated operations and make repetitive inspections no longer time-consuming and labor-intensive. When using AI Spot-Check, 15 the Matrix 350 RTK supports automatic framing and manual adjustment of subjects to improve the accuracy of repeated shots and the quality of inspection operations.
Operators will be able to get even more out of M350 RTK by leveraging the DJI SDK and API ecosystem.
Payload SDK: An incredible variety of third-party payloads such as gas detectors, speakers, multispectral sensors and processing modules can be integrated to use the platform in even more ways. Payload SDK supports E-Port, SkyPort V2, and DJI X-Port13, which greatly reduce the payload development lifecycle and maximize its potential in the most diverse scenarios. E-Port supports Payload SDK V3 and later versions and is compatible with third-party Payload SDK loads in the Matrix 30 series.
Mobile SDK: With a vast network of third-party mobile applications, endless features can be unlocked to meet the needs for specialized missions. Using Mobile SDK, M350 RTK supports the development of highly customizable mobile apps.
Cloud API: With the Cloud API, M350 RTK can be integrated directly into third-party cloud platforms via the DJI Pilot 2 app, accessing functions such as data transfer, live streaming, and flight route distribution.

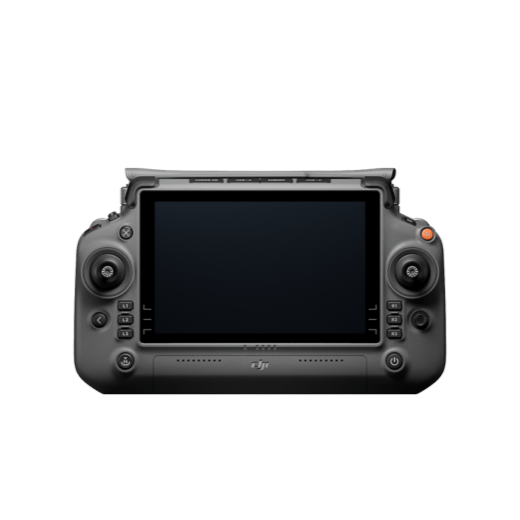

DJI RC Plus
The DJI RC Plus features a 7-inch screen with a brightness of up to 1,200 nits and multiple buttons, providing a smooth control experience. It has a standard WB37 external battery and supports hot battery replacement. It can run up to 6 hours when combining internal and external batteries for use.
* Strictly check and comply with local laws and regulations before flying.
** All data were tested with a 350 RTK Matrix production model in a controlled environment. The actual experience may vary depending on the environment, usage, and firmware version.
*** All videos and images on this page were shot in full compliance with local laws and regulations.
**** Before use, Matrix 350 RTK must be activated via the DJI Pilot 2 app.
1. Measured with Matrix 350 RTK in flight at about 8 m/s without payload in a windless environment until the battery level reached 0%. The data are for reference only. Pay attention to reminders in the app for actual usage time.
2. Measured in a controlled environment. The IP rating is not permanent and may decrease due to product wear and tear.
3. Up to 400 cycles if cumulative battery level life ≥ 90% is less than 120 days within 12 months.
4. Measured with the low-noise 2112 propellers and takeoff weight ≤ 7.2 kg.
5. Dual operator mode is required.
6. Measured in accordance with FCC regulations in an obstacle-free environment with low interference at a flight altitude of about 120 m. The data are for reference only. During the flight, pay attention to the application reminders.
7. There are some blind areas of visual sensing and infrared sensing. Positioning and obstacle detection performance can be affected by the flight environment and obstacle characteristics. Please fly with caution.
8. Sold separately.
9. Activate the radar obstacle avoidance function in the DJI Pilot 2 app and set the safe distance of the aircraft (a distance > 2.5 m is recommended); the flight speed should be < 10 m/s.
10. Measured when the radar reflection cross-sectional area of the detection target is ≥ 0.4 m². The actual detection range may vary depending on the size and material of the obstacle.
11. The gimbal connector is sold separately.
12. This function requires the remote control to connect to the Internet and download DEM files.
13. This function requires the Zenmuse P1.
14. DJI FlightHub 2 is required.
15. This function requires Zenmuse H20 series payloads.
16. The accessories in this section can also be used with the Matrix 300 RTK.
17. Measurement with CE compliance.
18. The aircraft comes with E-Port, while the SkyPort and X-Port components are sold separately.
