Transporter 6000

MEDIUM-RANGE DELIVERY DRONES

We design, manufacture, and distribute delivery drones that meet the highest standards of safety and reliability in the aviation industry.

Our operational fleet of drones is lightweight, lab-tested and approved in the real world through hundreds of hours of testing and commercial hospital delivery.

Dronebase has been active in the drone market for more than 10 years and has been experimenting and field-testing solutions for Delivery with Multirotor Drones and Vtols with operating ranges from 20 to 100 km and payloads from 3 to 15kg for 3 years now.

Transporter 6000, Transporter 6000
Transporter 6000, Transporter 6000

FLY MORE, DO EVERYTHING - IN ANY WEATHER

Automatic Drones for Delivery

Our aircraft operate autonomously. Anti-collision systems enable them to understand their surroundings, and our cloud-based autonomous flight planning software enables them to plan accurate and intelligent routes, check their systems for errors, and respond to delivery requests on demand.

Transporter 6000, Transporter 6000
Transporter 6000, Transporter 6000
Growing partnerships.

Our autonomous drone delivery system dramatically reduces delivery time and costs for emergency goods and vital hospital logistics such as blood, emo derivatives and urgent drugs. The entire ecosystem based on the latest cloud software, Apps and hardware enables easy and secure management of interconnected drone fleets with 5G connectivity.

Learn about ABZero, our hospital delivery partner

Transporter 6000, Transporter 6000

Power and Efficiency

Transporter 6000 Cargo drone is Power combined with uncompromising efficiency and safety.
Exceptional performance and capabilities, along with many cutting-edge technologies,
guarantee a safe and precise flying experience.
Resistant to Rain and Winds up to 40 km/h with a temperature range of -20° to 65°,

Transporter 6000 knows no environmental limits for your deliveries!
State-of-the-art redundant electronics, ultra-long-range Radiolink, Maximum accuracy with RTK GPS, combined with unrivaled flight times, make this cargo drone the ideal ally for your medium-range deliveries

20
KM

Link
Radio

80
MIN

Time flying

55
KM/H

Speed
Maximum

10
KG

Loading
Maximum

1080P
FULLHD

Video
Downstream

4G
5G

Connection
Data + Video

Main features

  • Modular carbon fiber/composite frame
  • IP54 Resistant to rain and dust
  • Detachable arm with integrated navigation LED
  • Powerful brushless motors with 32″ propellers.
  • Large landing gear
  • State-of-the-art redundant flight controller
  • Accurate with U-Blox M8P Dual GNSS Receiver (RTK Ready)
  • Dual Smart Battery 12S@22ah Redundant Power System
  • Resistant to extreme temperatures -20°/+50°
  • Weight: 15 kg with 2 smart batteries
  • Maximum payload: 10 kg
Transporter 6000, Transporter 6000

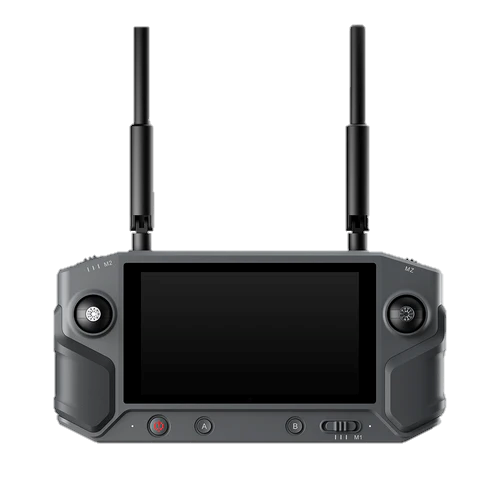

SMART CONTROLLER

5.5" SMART CONTROLLER

The Smart Controller is designed to maximize
Your flying experience in all environmental conditions
thanks to its small size, integrated touch display
Ultra bright 5.5" structure and waterproof IP53.

Thanks to the dedicated Android operating system, the intelligent controller
Can be customized to give you the best flight experience
as well as allowing third-party apps to be installed for specific needs.

Main features

  • FullHD 5.5″ 1000 cd/m2 Touch Display
  • 13 direct control channels for drone and payload
  • 20km data and video transmission range
  • 2.4ghz ISM
  • AES 128 encrypted signals
  • FullHD 1080p H264 / H265 video stream
  • 110ms latency
  • 4G sim slot for integrated internet connectivity
  • Dual Master-Slave + Hand Hover operator (with additional controller)
  • Android 9.0 inside
  • Up to 6 hours of operation with built-in Li-Ion batteries
  • Tipe-C fast charging (3 hours)
Transporter 6000, Transporter 6000

Main applications

Transporter 6000, Transporter 6000

Inland transportation

For transportation of spare parts within production sites.

Transporter 6000, Transporter 6000

Last-Mile Delivery

For medium-range delivery from the HUBs to the end customer

Transporter 6000, Transporter 6000

Hospital Delivery

For delivery of urgent goods between hospitals such as Blood and emo derivatives

Transporter 6000, Transporter 6000

Search and Rescue

Emergency supplies delivered accurately and quickly.

Transporter 6000, Transporter 6000

Off Shore § Delivery

Transporting port documents and urgent supplies between land and sea.

Transporter 6000, Transporter 6000

Command & Control*

CENTRALIZED REMOTE CONTROL SYSTEM

Imagine having to coordinate video surveillance operations. or Search Missing Persons from a Remote Operation Center.

Command & Control allows you not only to stream HD Video Streaming and Drone Telemetry via 4G/5G connection, but also remote control of Drone and Payload from a remote operation center

5G BVLOS Link

  • Centralized management of drone fleets
  • FullHD 1080p video streaming in real time
  • Map-based monitoring of each drone
  • Complete flight information
  • Remote control of camera and sensors
  • Remote video recording and flight log
  • AES265 data encryption
  • 5G signal monitoring
Transporter 6000, Transporter 6000

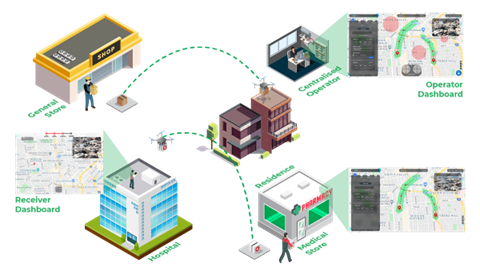

Drone Delivery System

MANAGE, PLAN, SHIP AND TRACK YOUR DELIVERIES
With dedicated cloud software for operators, stores,
and recipients, DS-Station allows administrators and users
To monitor delivery operations in real time from app.
DS-Station offers an end-to-end experience for delivery
via drones.
Administrators can create delivery requests,
centralized drone delivery operator can plan,
Approve and launch the drone, while all interested parties
including the recipient can track the live location
of the drone and see the video feed from the on-board cameras.

Transporter 6000, Transporter 6000
Transporter 6000, Transporter 6000

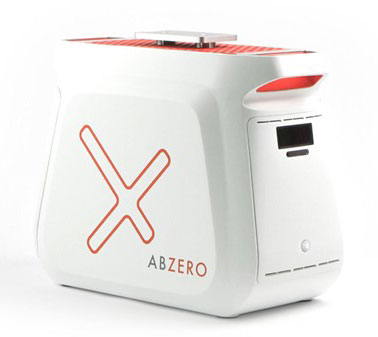

DBOX Max

DRONE DELIVERY BOX

The DBox "Drone Delivery Box" is a drone-mounted transportation device. An ultralight container, completely made of composite material suitable for transporting goods of all kinds.

  • Empty weight: 980g
  • Maximum transportable weight: 9.0kg
  • Volume: 18000 cm3
  • Maximum transportable dimensions: 240 x 300 x h240mm

Precision Landing

Indispensable solution for long-range precision delivery
In BVLOS scenario, precision landing becomes indispensable.

The system consists of a high-resolution camera that monitors
The space under the drone, the micro computer connected to the camera
recognizes the tag and through the algorithm uses it to align
to the same and perform the landing procedure with
centimeter accuracy by taking advantage of Computer Vision.

This system combined with the cloud management interface
Of the fleet makes the automated delivery system
Precise and safe at every stage.

Transporter 6000, Transporter 6000

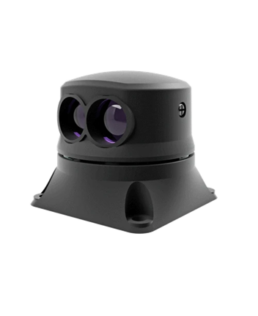

Intelligent

To increase flight safety, we have integrated
On 360°collision sensors capable of detecting obstacles up to 50m.
Even in complex operating environments, this system
Ensures the safety of the drone and the mission.

50mt detection

Transporter 6000, Transporter 6000
Transporter 6000, Transporter 6000
Sure

Integrated parachute

Integrated automatic parachute
With fault detection + remote ground control switch.
Speed reduction to 3.5-4.0 m/s at 25 kg

X6000 Pro RTK

Includes:

  • 1 x Drone X6000 PRO RTK Ready to Fly
  • 1 x 13 Ch Smart Controller wth 5.5″ Multi-Touch display
  • 1 x Drone control App/Software for Control and autonomous mission
  • 1 x USB charger for Smart Controller
  • 1 x USB cable for Drone / PC connection
  • 2 x 22000mah 12S smart battery
  • 1 x Smart charger (charges 2 smart batteries simultaneously in 50min)
  • 1 x Screws and assembly / disassembly tools
  • 1 x Wing & Body PackPack
  • 1 x User Manuals Eng.
  • 1 x 12 months warranty and remote / on-site assistance
Transporter 6000, Transporter 6000
Transporter 6000, Transporter 6000

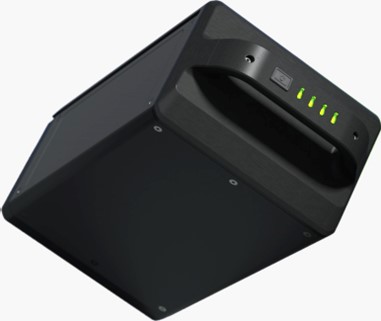

Smart Battery

Switch button, led battery status, sleep mode

  • 44.4V 12S
  • 22000mah 976.8 WH
  • 4.5kg
  • 143x282x98mm
  • Working temperature: -20° +55°

DRONE

Frame material
3k carbon fiber

Protection level

IP54

Size

1600 mm(Diagonal) 510 (Height)

Weight

8 kg (no Payload/No Batteries)17 kg (with battery)

MTOW

32 Kg

Load capacity

15 kg

Flight endurance

60min (No Payload), 50min@1.5kg, 40min@5kg, 30min@10kg

Flight precision(GPS/RTK)

V: ±0.5 m, H: ±1.5 m (RTK: V: ±0.1 m, H: ±0.05 m)

Max speed

15 m/s - 55km/h

Maximum Angular velocity

Pitch: 240°/s, Yaw: 100°/s

Maximum rotation speed

Yaw: 180°/s

Maximum pitch angle

30°

Maximum ascending speed

4 m/s*

Maximum descending speed

4 m/s*

Maximum transmission range

20km (up to 50km with updated Radio link)

Maximum ceiling

5000mt @17 kg

Temperature range

-20°c to + 60°c

Wind resistance

12 m/s

Time to put into operation

2'

Battery charging time

50' (2 smart batteries simultaneously)

SMART CONTROLLER

Display
5.5-Inch 1000cd/m2 1080p HD touch Display

Systema

Android 9.0, 8-Core CPU, 2G RAM, 16G ROM

Transmission radius

20km @1080p HD Digital Image Transmission

Frequency

2.4ghs ISM

Video Resolution

1080p@60fps H.264/H.265 Decoding

Low latency

110ms

Video Output

USB-C - HDMI

Battery life

5 hours

Connectivity

4G (SIM Card Slot), WiFi, Bluetooth

Built-in battery capacity

10200 mAh 7.4V 2S Li-on (integrated)

Charging time

2 Hours Fast Charging Type-C (PD30W)

External memory

TF Card Slot

Tripod Mount

1/4-inch

IKP Level

IP43

Temperature of use

-10°C - 55°C

Dimensions (without antennas)

218 x 106 x 32 mm

Weight

530 g

Transporter 6000, Transporter 6000
