PROFESSIONAL MAPPING CAMERA

LIDAR 3D SYSTEM

Wuhan Geosun Navigation Technology Co., Ltd. (hereafter referred to as GEOSUN), is a technical
enterprise based on fully independent intellectual property rights and dedicated to the application of
GNSS (Satellite Navigation), INS (Inertial Navigation), VL (Visual Positioning), LIDAR (Lidar), SLAM (Synchronous Location and Mapping)
and other professional technologies.

The company provides GNSS satellite positioning equipment, multi-sensor integrated positioning and
navigation systems, LiDAR scanning systems, satellite positioning deformation monitoring systems,
rail smoothness inertial navigation detection systems, and low-cost navigation system for unmanned vehicles.

The company’s products and solutions are widely used in land and resources, agriculture, forestry, water conservancy,
electric power, smart city, petroleum, surveying and mapping, transportation, communications and other fields.

, Fotogrammetria
, Fotogrammetria
, Fotogrammetria
, Fotogrammetria
, Fotogrammetria

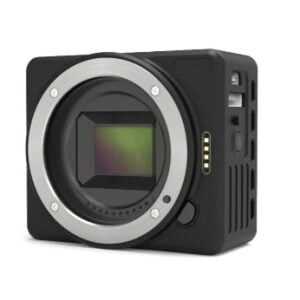

Model

Mapper 24MP

Mapper 36MP

Mapper 42MP

Mapper 61MP

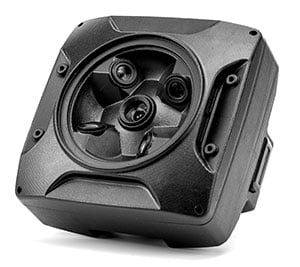

Oblique 120

Camera format:

APS-C
Full Frame
Full Frame
Full Frame

5 x APS-C

Sensor type:

APS CMOS Exmor

Exmor CMOS

CMOS Exmor R®

BSI CMOS

CMOS

Megapixel

24.3

36.3
42

60.2

121.5 (24.3×5)

Total Pixel

6000 x 4000

7360×4912

7952 x 5304

9504×6336
5 x 6000 x 4000

Supported Lens

25-35mm

25-35-40-56mm

25-35-40-56mm

25-35-40-56mm

25-35mm(included)

Image Format

JPEG, RAW,RAW+JPEG

JPEG, RAW,RAW+JPEG

JPEG, RAW,RAW+JPEG

JPEG, RAW,RAW+JPEG

JPEG, RAW,RAW+JPEG

Hot Shoe signal:

Yes

Yes

Yes

Yes

Yes

RTK/PPK interface

Yes

Yes

Yes

Yes

Yes

Shutter Trigger:

PWM

PWM

PWM

PWM

PWM

Shutter Speed:

30-1/4000sec

30-1/8000sec

30-1/8000sec

30-1/8000sec

30-1/4000sec

Continuous shooting:

3fps

4fps

2.5fps

3fps

1fps

Storage

SD Card-Max 512gb

SD Card-Max 512gb

SD Card-Max 512gb

SD Card-Max 512gb

SD Card-Max 512gb

Setup

Onboard/USB

Onboard/USB

Onboard/USB

Onboard/USB

Onboard/USB

Data Reading

USB3.0

USB3.0

USB3.0

USB3.0

USB3.0

Video Out

Yes, Micro HDMI

Yes, Micro HDMI

Yes, Micro HDMI

Yes, Micro HDMI

No

Power Supply

9-28V@1.2A

12-28V@1.2A

12-28V@1.2A

9-28V@1.2A
9-28V@1.2A

Operating Temperature

-10+50°C

-10+50°C

-10+50°C

-10+50°C

-10+50°C

Weight

105(without lens)

220(without lens)
220(without lens)
220(without lens)

700g(with lens)

Size

73*62*36mm

100*70*40mm
100*70*40mm
100*70*40mm

160*160*120mm

DJI PSDK

Yes, SkyPort (optional)

Yes, SkyPort (optional)

Yes, SkyPort (optional)

Yes, SkyPort (optional)

Yes, SkyPort (optional)

Pixhawk Ready

Yes

Yes

Yes

Yes

Yes

Standalone

Yes

Yes

Yes

Yes

Yes

, Fotogrammetria

One-Stop Aerial Survey Solution

Proficient in R&D. practical in technology. committed in services

Cost-Saving with Multiple Functions

Integrated oblique photography, orthophoto in one

Manpower-Saving With GCP Free

Indepent POS. One operator could complete the whole process of field data acquisition and processing

Time-Saving With Simple Operation

Easy to install, Efficient operation. Deeply integrated with DJI industry applications

Master of Mapping Lens

Mapping special lens, transparent imaging clear reduction, wide Angle view full coverage; High overlap rate, full coverage

Energy-Saving Payload

CNC aircraft aluminum alloy body support, light weight for reserving more power to increase fly time
