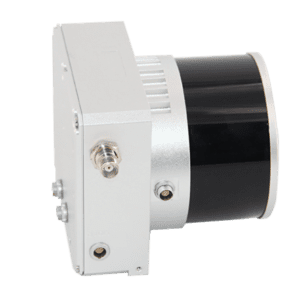

Why choose the GS260X 3D Lidar?

GS-260X combines a compact and lightweight design with detection range
and incredible efficiency combined with a price never seen before thanks to LIVOX technology.
The GC260X includes a Hesai Lidar module, a high-precision IMU and an integrated centimeter GPS system. GS260X is a complete, stand-alone solution compatible with any drone on the market that can capture complex structures by providing reconstructed models particularly

1280k
point/sec

dual-echo
point rate

200
mt

max
range

2.0
cm

range
precision

1000
ha/hour

max area
scan

360°
fov

circular
view

200
hz

imu
sensor

The most compact and high-performance drone lidar ever

Its design allows the device to be installed on any drone or ground vehicle.
Quick and easy to use, it is ready to scan within 2 minutes of being turned on.

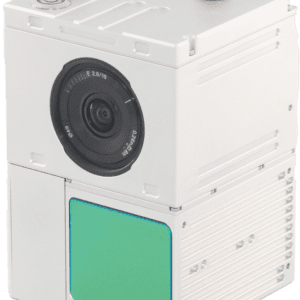

The technical specifications of the GS100 3D Lidar make it the ideal partner for the
More demanding topographers looking for an accurate and reliable instrument.
GS100 is suitable for any application, depending on the vehicle on which it is mounted:
From a classical topographic survey to agro-forestry surveys.

More Details

Main features

– 640,000 points/second Single Echo
– 1,280,000 points/second Double Echo
– Integrated 200hz IMU by GSN
– Fov 360° circular
– Maximum measuring range 120mt*
– L1-L2 GNSS integrated (2-5cm accuracy)
– 905nm Laser Class1 (IEC 60825-1:2014)
– Integrated control unit to synchronize sensor data
– RGB camera Ready(Sony Alpha 24-61mp)
– Compact and lightweight (1.26kg)
– Sturdy aluminum bodyCompatible with Multirotors, Fixed Wings, Vtol and Ground Vehicles

HESAI 3D Lidar Module

– Lidar framing with up to 100% effective point cloud results
– Detection range:
– 120 m (90% reflection)
– 80 m (10% reflection)
– Effective Points: 640,000 points/s
– Supports 2 returns
– Type of Scan: repetitive, non-repetitive

Industrial camera

– Brand : Sony
– Model : Sony A6000 – A7RII
– Sensor: APS-C – Full Frame
– Resolution : 24 – 42mp
– Lens : Low distortion 35mm
– Mechanical shutter
– Memory : Integrated 64gb
– Trigger : by time/distance

Hardware

– 1 x gAirHawk GS-260x Lidar
– 1 x GNSS Antenna L1-L2
– 1 x Micro SDCard 128gb
– 1 x USB flash drives 8gb
– 1 x Software Usage Manual
– 1 x Video Tutorial

Software:

– 1 x gAirHawk, GNSS post-processing and inertial data
– 1 x Shuttle for cloud georeferencing

Services:

– 1 x 1-year warranty
– 1 x Online technical support
