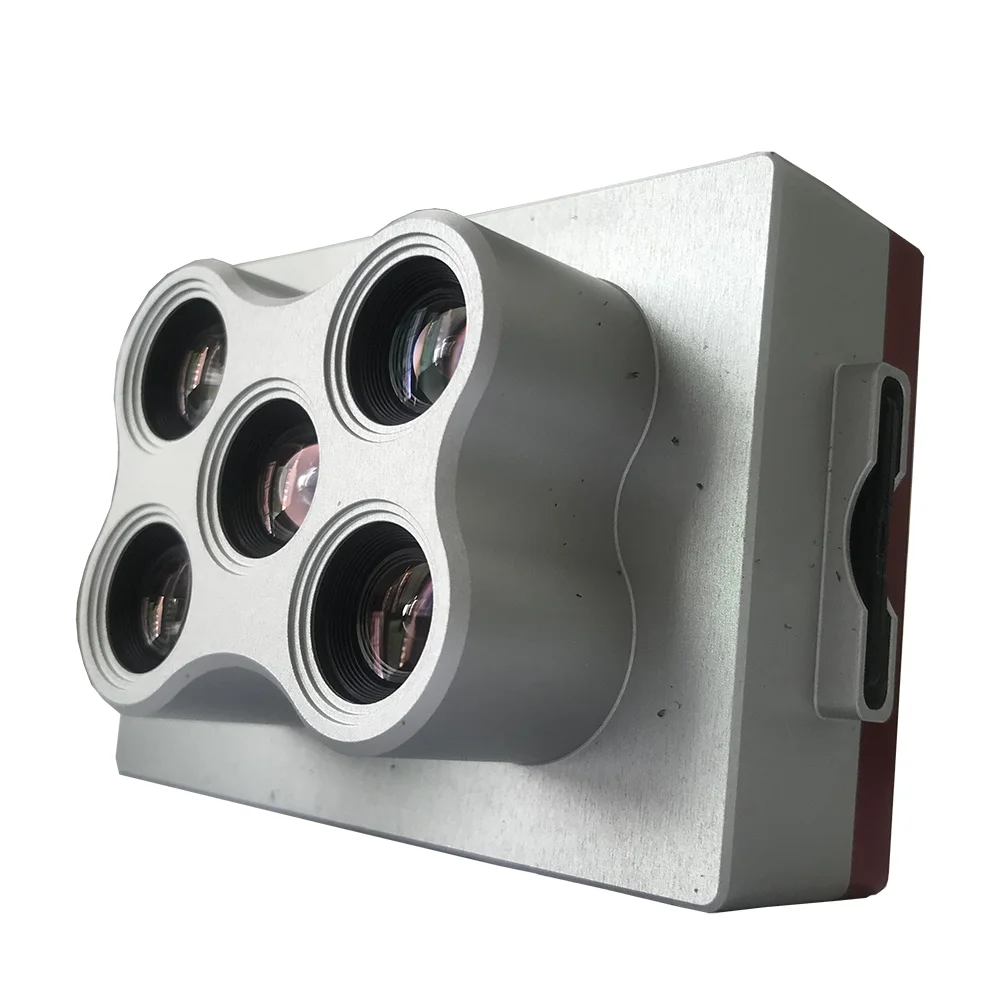

Micasense RedEdge-Mx
Micasense RedEdge-Mx
CAMERA PER AGRICOLTURA PER DRONI
Termocamera per Droni Flir Vue Pro, la più piccola e compatta telecamera termica studiata per droni oggi in commercio. Controllo remoto e uscita video live + app di configurazione dedicata.
Calibrated narrow bands
Five narrow high resolution (8 cm/pixel at 400 ft) spectral bands captured during one flight. Calibrated for precise, repeatable measurements.
Rugged and durable
New aluminum body for better durability and performance in higher temperatures. Global shutter imagers – no gimbal required and no moving parts.
Full flexibility
Compact size allows for integration with a wide variety of drones. Full access to raw data; outputs can be generated using a wide variety of processing and analysis platforms.
WATER MANAGEMENT
RedEdge-P can provide powerful insights into water management. For example, color composites using the NIR band (like CIR) can help users identify overly damp areas. In addition, areas that are benefiting from excess irrigation will be highlighted.
PLANT PHENOTYPING
Manually measuring plant characteristics is time-consuming. RedEdge-MX captures more data in less time, allowing researchers to understand how different breeds react to certain environments and modify desirable traits in order to improve yield.
CROP HEALTH MAPPING
Low chlorophyll content is often an early indicator of plant stress. RedEdge-P captures both visible and invisible spectral bands. From the different bands, it is possible to generate indices to see individual chlorophyll levels in the plants and compare over time.
FERTILIZER MANAGEMENT
RedEdge-P not only allows for easy identification of areas low in nutrients but also help monitor the effects of fertilizer applications throughout the season and determine if, when, and where a new application is needed.
DISEASE IDENTIFICATION
RedEdge-P captures a critical part of the light spectrum for studying plants (712–722 nm), called the red edge band. It is in this section of the spectrum that the first signs of stress start to show. Using analytics generated with the red edge band, growers can identify disease sooner and act faster to stop the spread.
SPECIES DIFFERENTATION
Some differences among species may not be visible to the naked eye. High-quality multispectral data allows for species differentiation by highlighting characteristics such as chlorophyll content, vigor, and leaf size.
ADVANCED CROP SCOUTING
High-quality multispectral imagery provides advanced field scouting capabilities. In one flight, it is possible to collect accurate and geotagged information of a problem, making easy to assess the situation and determine the appropriate intervention.
WEED DETECTION
Analytics developed with multispectral data can identify and highlight weeds, as weeds may have a different spectral signature than the planted crop.
TERRAIN MODELING
One of the advantages of a calibrated multispectral sensor is the generation of aligned outputs, which can be used to create digital surface models (DSM). A DSM provides insights into water management, land uses and terrain elevation.
LEAK SCOUTING
By measuring the reflectance on the red edge band, RedEdge allows the detection of irrigation leaks. The reflectance of the plants located in the areas with excessive irrigation varies from the rest of the field, oftentimes appearing healthier and showing high NDRE values.
Orthomosiac
Orthomosiac (3.26GB)
Fully processed orthomosaic captured in October 2021 in the Pacific Northwest over a pumpkin farm.
The pan-sharpened GSD of the flight is 2cm per pixel.
Note that the output format is GeoTiff and is intended to be viewed using GIS software (QGIS , ArcPro, ArcMap…).
RedEdge-MX Sensor Specifications
Weight |
460 g (16.2 oz.) Altum-PT + DLS2 |
|---|---|
|
Dimensions
|
11.0 x 8.0 x 6.9 cm |
|
External Power
|
7.0 V – 25.2 V |
|
Power Input
|
5.5/7.0/10W (standby, average, peak) |
|
Spectral Bands
|
Blue 475(32), Green 560(27), Red 668(14), Red Edge 717(12), NIR 842(57) |
|
Wavelength (nm)
|
Blue (475 nm center, 32 nm bandwidth), |
|
RGB Color Output
|
12.4 MP (global shutter, aligned with all bands) |
|
Thermal |
FLIR LWIR thermal infrared 7.5-13.5um radiometrically calibrated |
|
Multispec GSD (per multispec band) |
5.28 cm per pixel at 120 m
|
|
Sensor Resolution
|
2064 x 1544 (3.2MP per MS band) |
|
Thermal GSD |
33.5 cm per pixel at 120 m |
|
Panchro & Pansharpened GSD |
2.49 cm per pixel at 120 m |
|
Capture Rate
|
2 capture per second raw DNG* |
|
Interfaces
|
3 configurable GPIO: select from trigger input, PPS input, PPS output, and top of frame signals. Host virtual button. USB 2.0 port for WiFi. Serial. 10/100/1000 Ethernet. CFexpress for storage |
|
Field of View
|
50° HFOV x 38° VFOV (multispectral) |
|
Storage |
CFexpress Card
|
REDEDGE-MX KIT INCLUDES:
• RedEdge-Mx sensor
• DLS 2 with embedded GPS
• Lens cover
• SD card
• Calibrated Reflectance Panel (CRP)
• Cables and Mounting Screws
• Hard Carrying Case
• Quick Start Guide
REDEDGE-MX KIT INCLUDES:
• RedEdge-Mx sensor
• DLS 2 with embedded GPS
• Lens cover
• SkyPort Adapter
• SD card
• Calibrated Reflectance Panel (CRP)
• Cables and Mounting Screws
• Hard Carrying Case
• Quick Start Guide
