GIMBAL & PAYLOAD
BY INSPECTION.

4K Cameras with Zoom up to 40X | Radiometric Cameras

Always get the best in the field with specific Sensors and Gimbal for Aerial Inspection with Drones field-tested by our Team with igreat Italian Assets such as TERNA, ANAS and AUTOSTRADE. Complete solutions, compatible with any drone, 100% Plug & Play, now also equipped with artificial intelligence that can analyze RGB and Thermal Real Time images.

Ultra-stabilized Brushless gimbal, RGB cameras up to 4K with sensors up to 25mp, Zoom optics up to 40X, Flir Radiometric cameras with lenses up to 100mm, built-in video processors for image analysis with artificial ntelligence, quick mount system for quick docking and undocking of payload.

Not Only Gimbal and Payload but Complete Solutions for Inspection

Aerial Inspection with Professional Drones is not only about the Drone but all the equipment related to it including Flight Planning Software, Onboard Sensing, Precision GPS systems and Sensors

Our packages designed by Industry Professionals for Professionals integrate perfectly calibrated Chambers and Sensors connected to IMUs and Centimeter Precision GNSS Systems to achieve maximum performance in the shortest possible time.

Gimbal Inspection, Gimbal Inspection
Gimbal Inspection, Gimbal Inspection
Gimbal Inspection, Gimbal Inspection
Gimbal Inspection, Gimbal Inspection
Gimbal Inspection, Gimbal Inspection

Model

Zeta
X40-4k

Zeta
X30T-RF

Zeta
X30T-SL

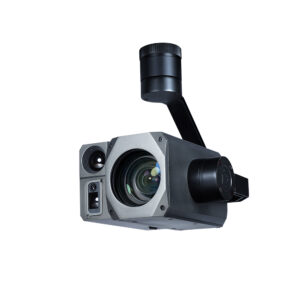

Gemini
AI X30TS-RF

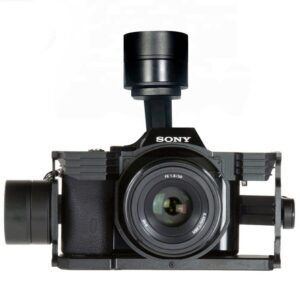

Sony
A7XX/A6000 Gimbal

EO Sensor

25.9MP - 4k

2.13MP - FullHD 1080p

2.13MP - FullHD 1080p

4.17MP - FullHD 1080p

4.17MP - FullHD 1080p

EO Optical Zoom

20x, F=4.08~81.6mm

30x, F=4.3~129mm

30x, F=4.3~129mm

30x, F=4.3~129mm

30x, F=4.3~129mm

EO Digital Zoom

40x

12x

12x

12x

12x

IR Sensor/ Pixel size

640*480p

640*512p - 12μm

IR Lens

25mm

19mm

IR Fov

H:63.7°

H:22.9°, V:18.4°

IR digital zoom

8x

AI Target Detection

Object Tracking

Laser range finder

1500m

1000m

Target Geolocalization

Starlight

KLV Meta Data (MPEG-TS)

Multiview

Quick-Mount

IP Rating

Ip43

Ip43

Ip43

Ip43

Ip43

Weight

1395g

587g

815g

1134g

750g

Dimension

127.6*164.5*173.5mm

135.5*135*120mm

127.6*164.5*173.5mm

173.5*128.7*204.6mm

188*138.50*152mm

Quick mount

Transform your Drone to suit your needs in a few moments without any setup or difficult wiring thanks to the brand new and exclusive Quick-Mount system that allows HOTSWAP from one Payload to another (gimbal or sensor) in a few moments without any setup and without having to turn off the drone.

No limitation of use for our drones thanks also to the Multisense HUB ready to connect to any sensor ensuring its control, data/video streaming and power supply.

Gimbal Inspection, Gimbal Inspection

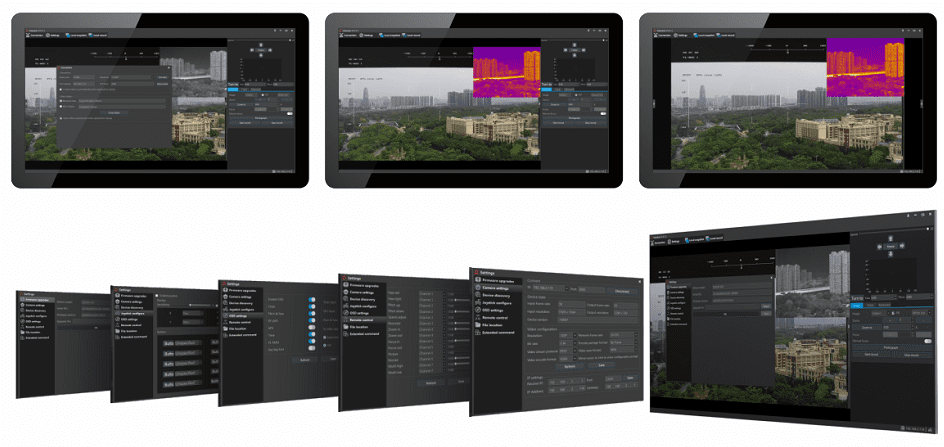

SmartControl Software

SmartControl is the software interface that allows all our Professional Gimbal to be managed via Ethernet/IP (RTSP/UDP), TCP and Serial (TTL) protocol. The software not only offers a rich interface of Payload control functions (manageable via external Joysticks), but also allows management of camera setup, OSD interface, control mapping from remote control, and video stream.
In the latest version of SmartControl, we have implemented the “maps” function, which allows the point we are framing to be displayed on a map.

Gimbal Inspection, Gimbal Inspection
