X4-800 Pro RTK
X4-800 PRO RTK
MULTIFUNCTIONAL INDUSTRIAL DRONE
Designed and Manufactured in Italy with
high quality components to meet
the highest specifications in Professional
FLY MORE, DO EVERYTHING - IN ANY WEATHER
X4-800 PRO RTK
X4-800 PRO RTK is pure power combined with uncompromised efficiency and safety.
Outstanding performance and functionality, along with state-of-the-art technology,
guarantee a safe and precise flying experience in any field of use.
Powerful and aggressive look, X4-800 PRO RTK is designed to be unrivaled.
IP54 weatherproof modular structure, efficient motors and 20″ propellers
make X4-800 PRO RTK capable of flying up to 0′ with a transmission range of 15km in any environmental condition,
with winds up to 12 m/s and maximum speed of 80km/h.
15
KM
Data +
Video Transmission
70
MIN
Time
flying
65
KM/H
Speed
Maximum
2.4
KG
Loading
Maximum
1080P
FULLHD
Video
Downstream
IP54
LEVEL
Weatherproof
structure
Ready for anything
PROFESSIONAL MULTI-ROLE DRONE
Cutting-edge electronics, open architecture,
Wide availability of interfaces coupled with large load capacity
and an unrivaled range, make X4-800 Pro RTK
A new benchmark for industrial drones under 25 kg.
Open software, multistandard hardware interface with
ETHERNET ports, CAN, UART, I2C, PWM, S-Bus, API E DC 5V,12V@5AH
enabling the creation of integrated intelligent control systems
for each connected peripheral or sensor.
Multirole
Modular and Versatile structure suitable for any application.
High Quality
Completely made of selected composite materials.
Precise
Centimeter accuracy with RTK GNSS systems
Safe
Safe With latest generation redundant electronics
Smart
Precise and reliable autonomous flight with Lidar 360° anti-collision system.
Custom
Qualified technicians at your service for custom projects.

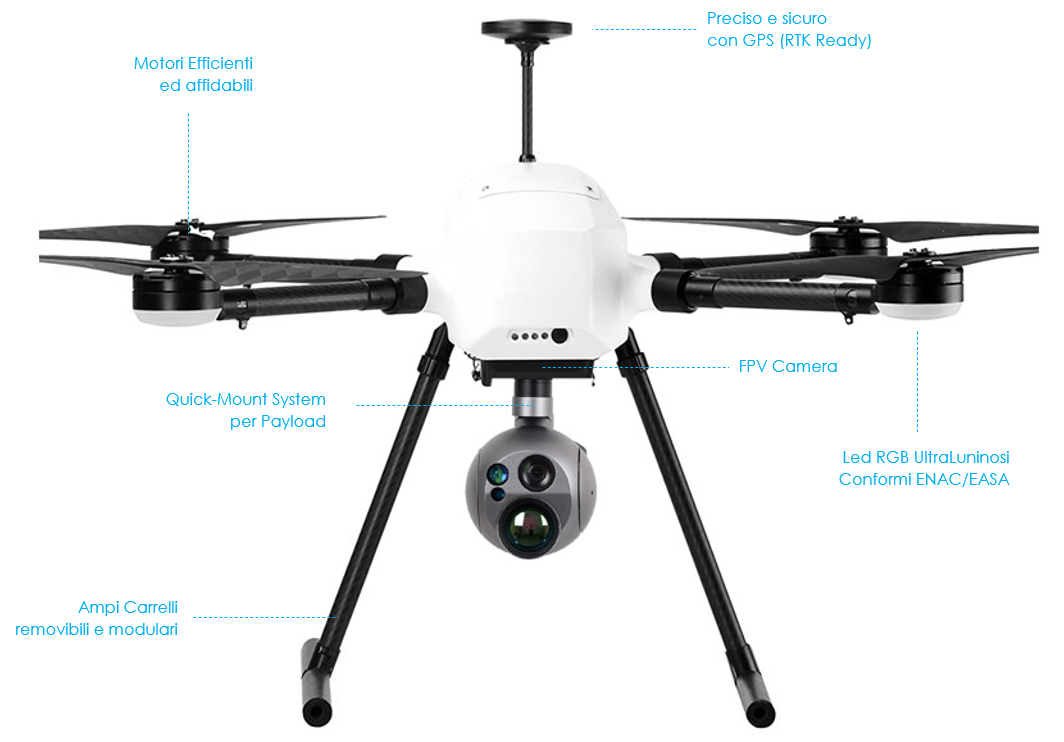

Main Features
- Modular Carbon Frame
- IP54 rain and dust resistant
- Foldable arms with integrated RGB LEDs
- Efficient brushless motors with 20″ foldable propellers
- Large and sturdy removable trolleys
- Latest generation redundant electronics
- U-Blox M8P GPS Receiver (RTK Ready) for Maximum Accuracy
- 22ah High Capacity Smart Battery
- Resistant to extreme temperatures -15 ° / + 50 °
- Weight: 3.6kg with batteries in flight order
- Max Payload: 2.6kg
SMART CONTROLLER
5.5" SMART CONTROLLER
The Smart Controller is designed to maximize
Your flying experience in all environmental conditions
thanks to its small size, integrated touch display
Ultra bright 5.5" structure and waterproof IP53.
Thanks to the dedicated Android operating system, the intelligent controller
Can be customized to give you the best flight experience
as well as allowing third-party apps to be installed for specific needs.
Main features
- FullHD 5.5″ 1000 cd/m2 Touch Display
- 13 direct control channels for drone and payload
- 20km data and video transmission range
- 2.4ghz ISM
- AES 128 encrypted signals
- FullHD 1080p H264 / H265 video stream
- 110ms latency
- 4G sim slot for integrated internet connectivity
- Dual Master-Slave + Hand Hover operator (with additional controller)
- Android 9.0 inside
- Up to 6 hours of operation with built-in Li-Ion batteries
- Tipe-C fast charging (3 hours)
Automatic Missions in 1 Click

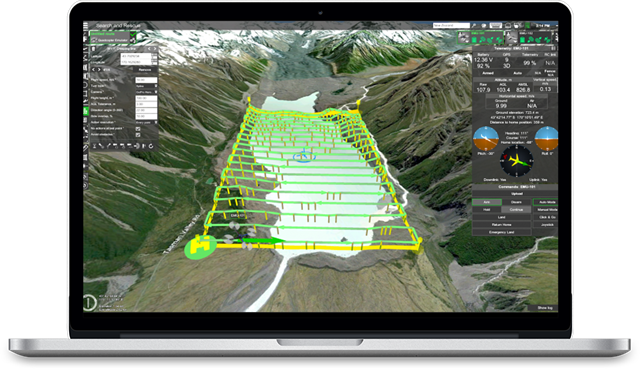

DEDICATED PROFESSIONAL APPS AND SOFTWARE
Simple and intuitive drone control interface With specific tools for photogrammetry and 3d surveying. The Smart Controller is a precise and simple tool that facilitates the management the most advanced features. Gimbal and zoom functions can be used as the drone travels along the already planned path.
Main functions
- Autonomous takeoff and landing
- Automatic scans for photogrammetry with dedicated tool
- Flight with Waypoints that can be programmed individually or in groups
- Predefined templates for quick scans
- Automatic scanning of 3D buildings
- Automatic acquisition of georeferenced photos
- Electronic fence for maximum security
- KML data import, DEM and DTM data import *
- 3D object import tool *
- *only with UGCS Pro software (optional)
*Optional on request

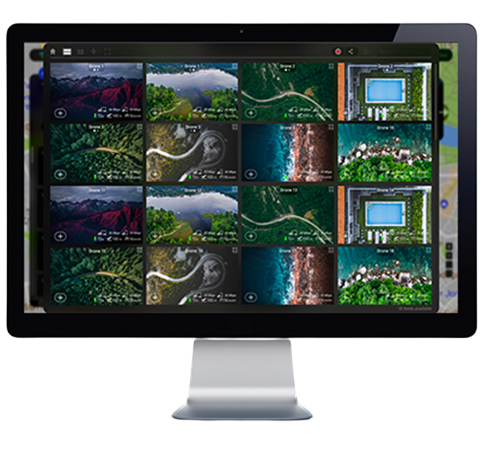

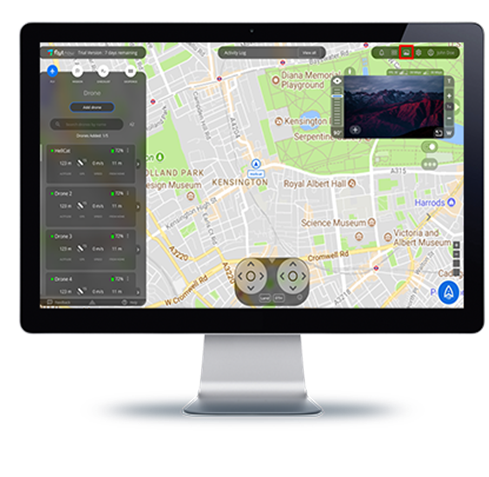

Command & Control*
CENTRALIZED REMOTE CONTROL SYSTEM
Imagine having to coordinate video surveillance operations. or Search Missing Persons from a Remote Operation Center.
Command & Control allows you not only to stream HD Video Streaming and Drone Telemetry via 4G/5G connection, but also remote control of Drone and Payload from a remote operation center
4G/5G BVLOS Link
- Centralized management of drone fleets (max 30 UAVs)
- FullHD 1080p video streaming in real time
- Map-based monitoring of each drone
- Complete flight information with statistics
- Remote control of gimbals and sensors
- Remote video recording and flight logs
- AES265 data encryption
RS2 RTK
GPS Base RTK L1/L2
RTK Mobile Station is a high-precision GNSS receiver that
Supports all major global satellite navigation systems,
Providing real-time differential corrections that generate
centimeter-level placements given for better
relative accuracy. In addition, there is a 3.5 GB modem that you can
Use for setting up a network rover.
RTK / PPK technology
No more ground targets thanks to Direct Centimeter Georeferencing with RTK Technology and PPK* (Post Processing Kinematic) on board. Complete Base/Rover station management, RINEX log logging, and NMEA output configuration.
- Simple and intuitive interface via App
- Rapid management and export of Rinex logs via wifi
- Multifrequency L1OF, L2OF, L1C/A, L2C, E1B/C, E5b, B1I B2I
- Positioning 1 cm + 1 ppm (X/Y)1.5 cm + 1 ppm (Z)
What X4-800 can do
X4-800 Pro RTK was born from joint research with law enforcement and specialized agencies in Italy and around the World that have
contributed their field experience to help us achieve the highest performance for operations of
VIDEO SURVEILLANCE, BORDER CONTROL, MISSING PERSON SEARCH
No Compromise
The state-of-the-art ISR systems available for Explorer 1000 enable the detection and Identification of People and Vehicles from miles away using high-resolution Thermal and Optical sensors with up to 40X zoom.
Quick Mount
The brand new and exclusive HOT SWAP Quick-Mount quick-attach system allows you to switch from one payload to another in a matter of moments without any setup and without having to turn off the drone.
DRI VALUE |
IR 640 50mm |
ZOOM 40X |
|---|---|---|
|
Sensing (Male: 1.8×0.5m) |
1470 mt |
4400 mt |
|
Recognition (Male: 1.8×0.5m) |
368 mt |
1100 m |
|
Face Identification (Male: 1.8×0.5m) |
184 mt |
550 mt |
|
Sensing (Auto: 4.2×1.8m) |
4510 mt |
10240 mt |
|
Recognition (Auto: 4.2×1.8m) |
1127 mt |
2560 mt |
|
License Plate Identification (Car: 4.2×1.8m) |
564 mt |
1280 mt |
Multi-role
SELECT THE SENSOR BEST SUITED TO YOUR NEEDS
It transforms X4-800 PRO RTK to meet your needs in a second without the need for any difficult installation or wiring thanks to the brand new and exclusive Quick-Mount system that allows HOTSWAP from one Payload to another (gimbal or sensor) in a few moments without any configuration and without having to turn off the drone.
No integration limits for our drones thanks also to the Multisense HUB ready to connect to any sensor ensuring control, data/video streaming and power.
ISR Payload
Single or Dual Sensors
- RGB sensors up to 25mp
- 4K Video
- Optical zoom up to 30x (12x digital)
- 640p 30fps thermal imaging
- Optical lens up to 50mm
- Laser Range Finder 4000mt
- Distance calculation and target Coordinates
- Automatic target tracking
- IR+RGB Geotagged images
- IR, RGB, and PIP display
Cameras and sensors
RGB, Radiometric and Industrial
- Radiometric thermal cameras
- Multispectral cameras
- RGB cameras up to 120mp
- 3D Lidar
- Multigas sensors
- Radiation sensors
- Georadar
- Echosonar
- Metaldetector
Lidar Systems for Drones
Maximum performance in small size and competitive prices.
3D Lidar for Drones and Ground Vehicles with integrated IMU and precision GNSS PPK system.
Scans up to 2 km2/hour
Plug&Play
Ready-to-use solution for restitution of point clouds And precision 3D models.
Triple Echo
Triple Echo Technology to Penetrate in the thickest vegetation and get accurate DTM.
Software Included
Simple and fast software of postprocesing by generation LAS
Precise and Accurate
Inertial platforms of the highest precision and GPS RTK for a precise and accurate restitution.
Smart
Apps and Software for Planning missions with Dedicated Tools for 3D Lidar Scans
Camera Ready
Control interface for cameras and External sensors to color the cloud with RGB, Thermal or Multispectral images

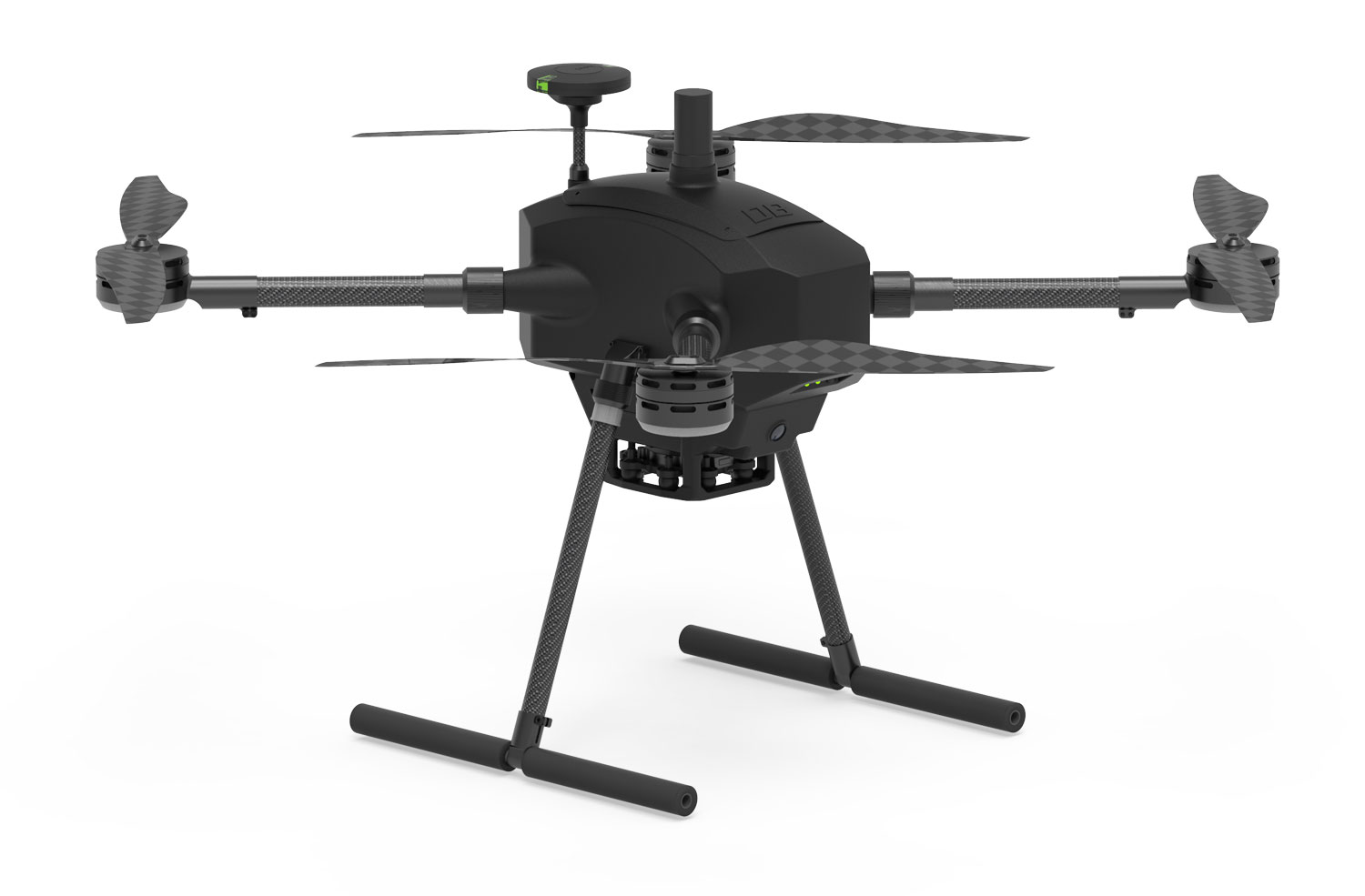

X4-800 Pro RTK
Includes:
- 1 x Drone X4-800 PRO RTK ready to fly
- 1 x 16 Ch Smart Controller with 5.5″ touch display
- 1 x Quick Mount Interface and Multisense HUB for Gimbal and Sensors
- 1 x ADS-B receiver 1090MHz
- 1 x Drone control app & mission planning software
- 1 x USB Cable for Drone/PC
- 1 x Smart Battery 22Ah 6S 15C LipoHV – Semisolid
- 1 x Smart Charger (charges 1 battery in 50min)
- 1 x Assembly Tools
- 1 x Manual
- 1 x 12 months warranty
Smart Battery
Switch button, led battery status, sleep mode
- 22.2V 6S
- 22000mah 488.4 WH
- 2.0kg
- 216mm*86mm*77mm
- Working temperature: -20° +55°

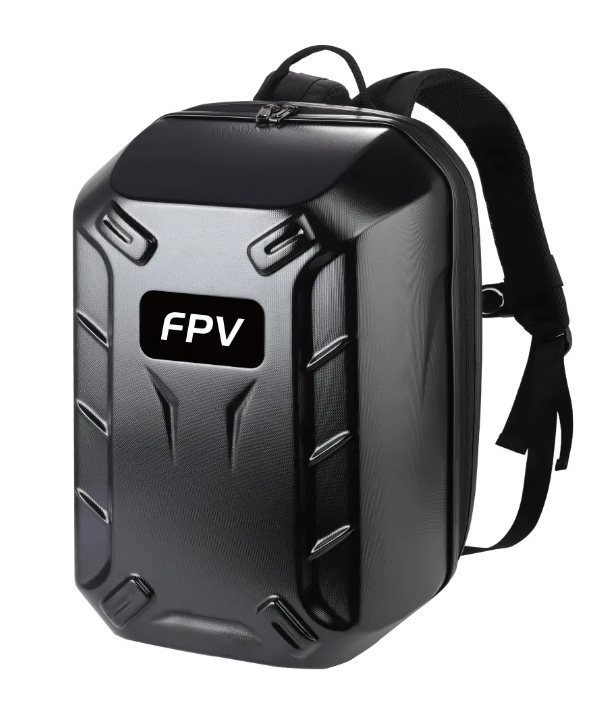

Transportable
The Modular structure with quick-release arms and trolleys.
allows the X4-800 Pro RTK to be easily transported thanks to the
Semi-rigid backpack with sponge interior
pre-cut high-density.
IP 43 Semi-rigid backpack:
- Case dimensions: 600x400xh320
- Empty weight: 2kg (with sponges)
- IP43 waterproof
- Adjustable straps
- Pre-cut sponge interior
What it may contain:
1 x Drone X4-800 Pro RTK
1 x Smart controller
1 x LipoHV 25Ah 6S 25C Batteries
2 x Carts
1 x Smart Charger
1 x Screws and assembly tool
1 x Miscellaneous accessories and cables
DRONE
Materiale Frame |
Carbonio 3k |
|---|---|
|
Level Protection |
IP54 |
|
Motor spacing |
700 mm |
|
Folded size |
283 x 178 x 175 mm |
|
Drone Size |
990 x 900 x 510 mm |
|
Weight |
3.6 kg(with batteries) |
|
MTOW |
6 kg |
|
Maximum load |
2.4 kg |
|
Flight time |
70' (No Payload), 55'@1kg |
|
Accuracy(GPS/RTK) |
V: ±0.5 m, H: ±1.5 m (RTK: V: ±0.1 m, H: ±0.05 m) |
|
Maximum Speed |
18 m/s - 65km/h (no wind)* |
|
Maximum Angular Velocity |
Pitch: 240°/s, Yaw: 100°/s* |
|
Maximum Rotation Speed |
Yaw: 180°/s* |
|
Maximum pitch angle |
35° * |
|
Maximum climbing speed |
5 m/s* |
|
Maximum downhill speed |
3 m/s* |
|
Maximum transmission range |
15km |
|
Maximum ceiling |
4000mt @5kg |
|
Operational Temoerature |
-20°c to + 50°c |
|
Wind resistance |
14 m/s |
|
Set-up time |
2' |
|
Battery charging time |
50' (2 batteries at the same time) |
SMART CONTROLLER
Display |
5.5-Inch 1000cd/m2 1080p HD touch Display |
|---|---|
|
Systema |
Android 9.0, 8-Core CPU, 2G RAM, 16G ROM |
|
Transmission radius |
20km @1080p HD Digital Image Transmission |
|
Frequency |
2.4ghs ISM |
|
Video Resolution |
1080p@60fps H.264/H.265 Decoding |
|
Low latency |
110ms |
|
Video Output |
USB-C - HDMI |
|
Battery life |
5 hours |
|
Connectivity |
4G (SIM Card Slot), WiFi, Bluetooth |
|
Built-in battery capacity |
10200 mAh 7.4V 2S Li-on (integrated) |
|
Charging time |
2 Hours Fast Charging Type-C (PD30W) |
|
External memory |
TF Card Slot |
|
Tripod Mount |
1/4-inch |
|
IKP Level |
IP43 |
|
Temperature of use |
-10°C - 55°C |
|
Dimensions (without antennas) |
218 x 106 x 32 mm |
|
Weight |
530 g |
