CNC Aluminium alloy

The best material for aerial surveying and mapping industry. Light, moderate strength, easy to process forming, strong corrosion resistance

Synchronization processingto make synchronization at the microsecond level.

Blv pro

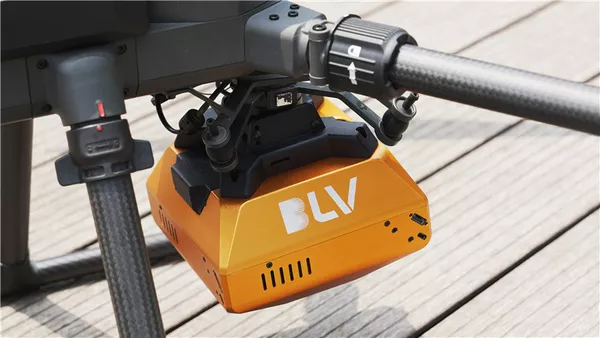

Open up DJI RTK communication link, it deeply adapts to DJI M350 or M300 RTK, accurately records POS data, focuses on flying, and improves working efficiency.

Our unique quick-release PSDK module is supported the camera to be adapted to the mainstream UAV platforms in the market, including DJI M350, M300 or VTOL.

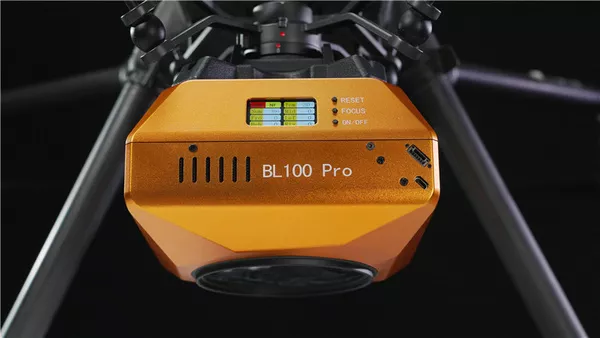

OLED HD color screen, which can display the camera status in a real-time, including body temperature, shutter times used, trigger singal and picture number taken from each lens.

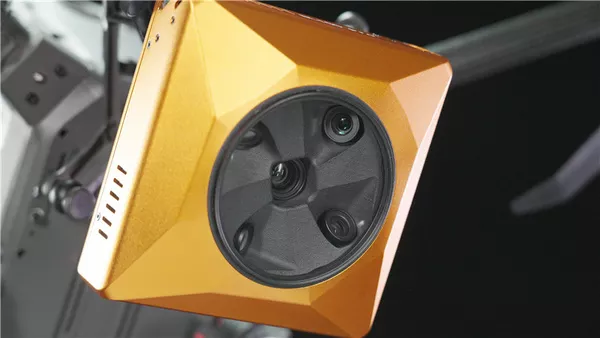

It equipped with the professional surveying and mapping lens which is Imported ED lens from Japan HOYA™
and each one be strictly checked and calibrated by standard calibration parameters
BLV 100

BL100 Spec Sheet

Power Supply
DC 12 ~ 48 V


Power Supply By Drone

Power On/Off

Auto On/Off

Data Transfer

Type - C Cable


1280 GB

Effective Pixels

Single Lens :24 Million (Total 120 Million Pixels)

Sensor Size

APS-C (23.5*15.6mm)

Pixel Size

3.91 um

Image Resolution

3:2 (6000 × 4000)

Tilt Degree


Lens Qty

5 Pcs

Focal Length

Nadir: 25 mm,Oblique: 35 mm

Exposure Time

≥0.6 s

Exposure Mode

Flight Control Trigger

Operating Mode

Trigger by Flight Controller, Isometric photography, andIsochronous photography

Working Temperature

-10 ℃ ~ 40 ℃






≈650 g
