Description
CNC Aluminium alloy
The best material for aerial surveying and mapping industry.
Light, moderate strength, easy to process forming, strong corrosion resistance
It equipped with the professional surveying and mapping lens which is Imported ED lens from Japan HOYA™
and each one be strictly checked and calibrated by standard calibration parameters.
Integrated card slot
When designing the storage unit, we always insist that the memory unit can be detachable, so that the user does not need to carry the aircraft when exporting data
Turbine cooling fan intake

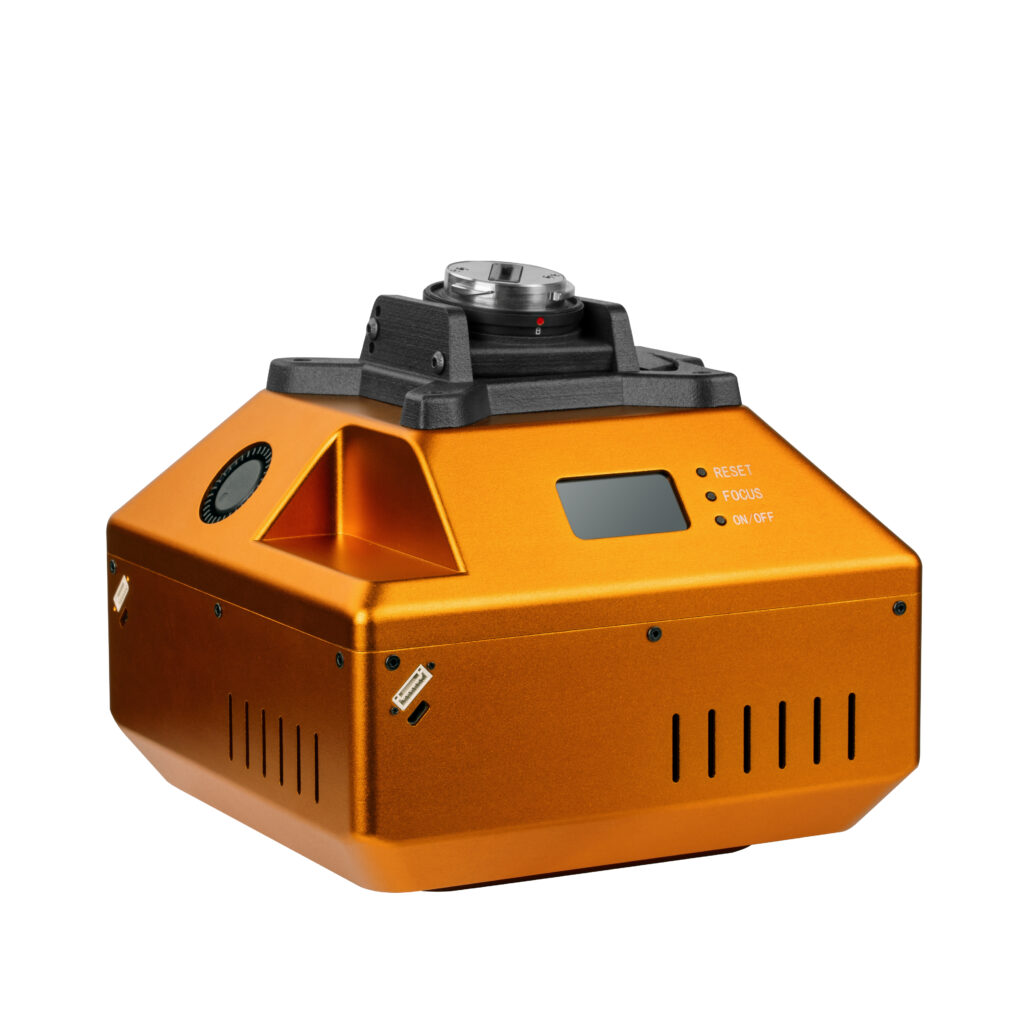

One key repair error button
Any program error in the camera can be repaired directly by pressing the repair button without the need to return to the factory

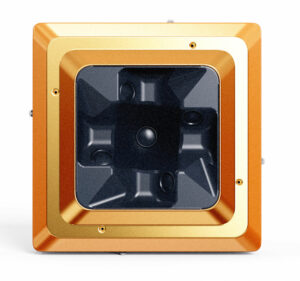

Imported ED lens from Japan HOYA™ (checked and calibrated)
The special requirements of surveying and mapping industry make each camera factory must be strictly checked and calibrated by standard calibration parameters.
Aviation grade aluminum alloy integrated plug
Meet the high intensity operation and high frequency sweep pendulum use.
HDMI HD image transmission interface
Allow you to receive real-time video images while flying, preview aerial photography effect and ensure flight safetyThespecial requirements of surveying and mapping industry make each camera factory must be strictly checked and calibrated, and standard calibration parameters.
BL200 Pro Spec Sheet
Power Supply |
DC 12 ~ 48 V |
---|---|
Endurance |
Power Supply By Drone |
Power On/Off |
Auto On/Off |
Data Transfer |
Type - C Cable |
Storage |
1280 GB |
Effective Pixels |
Single Lens :24 Million (Total 120 Million Pixels) |
Sensor Size |
Full frame (35.8*23.9mm) |
Lens qty |
5 Pcs |
Image Resolution |
7952 × 5304 |
Tilt Degree |
45° |
Focal Length |
Nadir: 40 mm,Oblique: 56 mm |
Exposure Time |
≥1.2 s |
Exposure Mode |
Flight Control Trigger |
Operating Mode |
Trigger by Flight Controller, Isometric photography, and Isochronous photography |
Working Temperature |
-10 ℃ ~ 40 ℃ |
Humidity |
≤95% |
Size |
150mm*150mm*116mm |
Weight |
≈1270 g |
